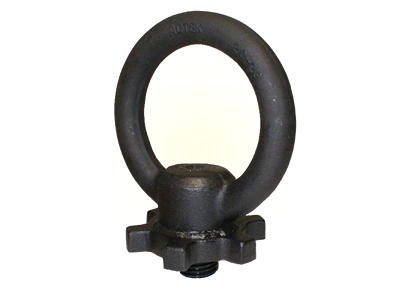

Super Eyebolts

Super Eyebolts

Product Features:

  • Patent #6,398,447
  • This is a "rugged" eyebolt this is designed for lifting.
  • Does not spin or rotate
  • Magnetic Particle Inspected.
  • Aircraft Quality "Chrome Moly."
  • Certified Heat Treated.



Specifications:

Super Eyebolts

Item # Thread Type Material Thread Diameter (A) Working Load Limit Thread Protrusion - (E)
48630 Coil  Chrome Moly  3/4 in  4000 lbs  3/4 in
48640 Coil  Chrome Moly  1 in  5000 lbs  1 in
48650 Coil  Chrome Moly  1 1/4 in  8000 lbs  1 in
48660 Coil  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in
48631 UNC  Chrome Moly  3/4 in  4000 lbs  3/4 in
48641 UNC  Chrome Moly  1 in  5000 lbs  1 in
48651 UNC  Chrome Moly  1 1/4 in  8000 lbs  1 in
48661 UNC  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in
48633 Acme  Chrome Moly  3/4 in  4000 lbs  3/4 in
48643 Acme  Chrome Moly  1 in  5000 lbs  1 in
48653 Acme  Chrome Moly  1 1/4 in  8000 lbs  1 in
48663 Acme  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
