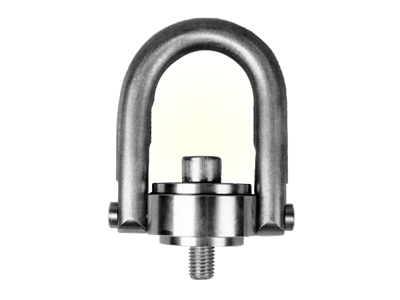

Stainless Steel Hoist Rings
Product Features:
|
Specifications:

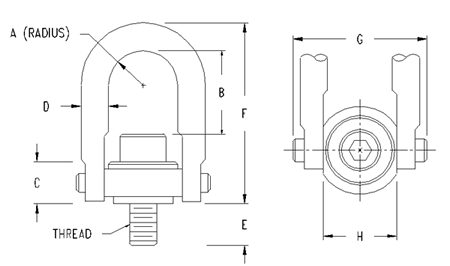

| Item # | Rated Load | Thread Size | Thread Protrusion (E) | B | Torque |
| 58102 | 400 lbs | 5/16" - 18 | 0.29 in | 1.27 in | 3.5 ft/lb |
| 58104 | 400 lbs | 5/16" - 18 | 0.54 in | 1.27 in | 3.5 ft/lb |
| 58106 | 500 lbs | 3/8" - 16 | 0.54 in | 1.27 in | 6 ft/lb |
| 58602 | 1250 lbs | 1/2" - 13 | 1.07 in | 1.84 in | 14 ft/lb |
| 58008 | 1250 lbs | 1/2" - 13 | 0.78 in | 2.31 in | 14 ft/lb |
| 58644 | 1250 lbs | 1/2" - 13 | 0.78 in | 4.25 in | 14 ft/lb |
| 58010 | 1250 lbs | 1/2" - 13 | 1.03 in | 2.31 in | 14 ft/lb |
| 58646 | 1250 lbs | 1/2" - 13 | 1.03 in | 4.25 in | 14 ft/lb |
| 58012 | 1250 lbs | 1/2" - 13 | 1.28 in | 2.31 in | 14 ft/lb |
| 58648 | 1250 lbs | 1/2" - 13 | 1.28 in | 4.25 in | 14 ft/lb |
| 58002 | 2000 lbs | 5/8" - 11 | 0.78 in | 2.18 in | 30 ft/lb |
| 58641 | 2000 lbs | 5/8" - 11 | 0.78 in | 4.12 in | 30 ft/lb |
| 58004 | 2000 lbs | 5/8" - 11 | 1.03 in | 2.18 in | 30 ft/lb |
| 58640 | 2000 lbs | 5/8" - 11 | 1.03 in | 4.12 in | 30 ft/lb |
| 58006 | 2000 lbs | 5/8" - 11 | 1.28 in | 2.18 in | 30 ft/lb |
| 58642 | 2000 lbs | 5/8" - 11 | 1.28 in | 4.12 in | 30 ft/lb |
| 58014 | 2500 lbs | 3/4" - 10 | 1.03 in | 2.06 in | 50 ft/lb |
| 58650 | 2500 lbs | 3/4" - 10 | 1.03 in | 4.00 in | 50 ft/lb |
| 58018 | 2500 lbs | 3/4" - 10 | 1.53 in | 2.06 in | 50 ft/lb |
| 58654 | 2500 lbs | 3/4" - 10 | 1.53 in | 4.00 in | 50 ft/lb |
| 58204 | 3500 lbs | 3/4" - 10 | 1.04 in | 3.06 in | 50 ft/lb |
| 58658 | 3500 lbs | 3/4" - 10 | 1.04 in | 4.65 in | 50 ft/lb |
| 58206 | 3500 lbs | 3/4" - 10 | 1.54 in | 3.06 in | 50 ft/lb |
| 58660 | 3500 lbs | 3/4" - 10 | 1.54 in | 4.65 in | 50 ft/lb |
| 58202 | 4000 lbs | 7/8" - 9 | 1.04 in | 2.93 in | 80 ft/lb |
| 58656 | 4000 lbs | 7/8" - 9 | 1.04 in | 4.52 in | 80 ft/lb |
| 58203 | 4000 lbs | 7/8" - 9 | 1.29 in | 2.93 in | 80 ft/lb |
| 58652 | 4000 lbs | 7/8" - 9 | 1.29 in | 4.52 in | 80 ft/lb |
| 58210 | 5000 lbs | 1" - 8 | 1.29 in | 2.81 in | 115 ft/lb |
| 58662 | 5000 lbs | 1" - 8 | 1.29 in | 4.40 in | 115 ft/lb |
| 58212 | 5000 lbs | 1" - 8 | 1.54 in | 2.81 in | 115 ft/lb |
| 58664 | 5000 lbs | 1" - 8 | 1.54 in | 4.40 in | 115 ft/lb |
| 58214 | 5000 lbs | 1" - 8 | 2.29 in | 2.81 in | 115 ft/lb |
| 58666 | 5000 lbs | 1" - 8 | 2.29 in | 4.40 in | 115 ft/lb |
| 58802 | 7500 lbs | 1 1/4" - 7 | 1.89 in | 4.12 in | 235 ft/lb |
| 58404 | 12000 lbs | 1 1/2" - 6 | 2.70 in | 6.41 in | 400 ft/lb |
| 58400 | 15000 lbs | 2" - 4 1/2 | 2.96 in | 5.91 in | 400 ft/lb |
| 59002 | 25000 lbs | 2 1/2" - 8 | 4.00 in | 8.03 in | 1050 ft/lb |
| 59006 | 25000 lbs | 2 1/2" - 4 | 4.00 in | 8.03 in | 1050 ft/lb |
| 59200 | 37500 lbs | 3" - 4 | 5.00 in | 8.48 in | 2150 ft/lb |
| 59402 | 50000 lbs | 3 1/2" - 4 | 7.00 in | 9.28 in | 2550 ft/lb |
Use the table above to find the part number you desire then click "Add To Quote." |
.
