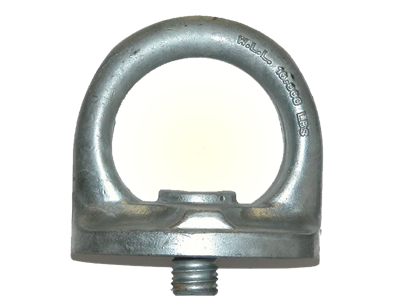

Low Profile Super Eyebolts

Low Profile Super Eyebolts

Product Features:

  • This is a "rugged" eyebolt this is designed for lifting. Does not spin or rotate.
  • Magnetic Particle Inspected
  • Available in Either Hot-dipped Galvanized or Black Oxide Finish
  • Aircraft Quality "Chrome Moly"
  • Certified Heat Treated



Specifications:

Low Profile Super Eyebolts

Item # Thread Type Material Thread Diameter (A) Working Load Limit Thread Protrusion - (E)
48612 Coil  Chrome Moly  1 in  5000 lbs  1 in
48680 Coil  Chrome Moly  1 1/4 in  8000 lbs  1 in
48685 Coil  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in
48712 UNC  Chrome Moly  1 in  5000 lbs  1 in
48714 UNC  Chrome Moly  1 1/4 in  8000 lbs  1 in
48716 UNC  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in
48722 Acme  Chrome Moly  1 in  5000 lbs  1 in
48724 Acme  Chrome Moly  1 1/4 in  8000 lbs  1 in
48726 Acme  Chrome Moly  1 1/2 in  10000 lbs  1 1/2 in

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
