Beam Grabs Extended

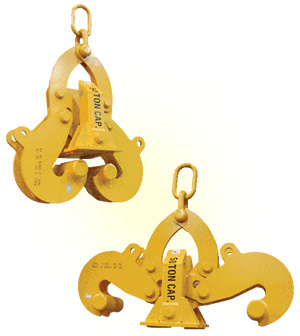

Beam Grabs Extended Model F-5

Product Features:

  • Custom designed for your application.
  • Heavy duty grab handles wide flange beam sections and plate girders.
  • Dog points on base furnish additional gripping force.
  • Hook design assures contact to the beam flange or girder.
  • Both hooks have chain holes - attach chain slings and use for opening hooks.
  • Adjustable hook positions fit a set range of flange widths.
  • For long loads, use two heavy-duty beam clamps and one spreader beam.
  • Complies with ASME standards.



Specifications:

Beam Grabs Extended Model F-50 Diagram 1

Beam Grabs Extended Model F-50 Diagram 2

Model Number Rated Capacity
(tons)		 A
(in.)		 B
(in.)		 C
(in.)		 W
(in.)		 S
(in.)		 Weight
(lbs.)
F-50 50 83 80 30 30-40 22 2800
